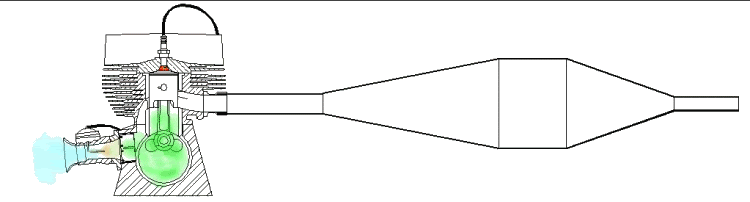

    Nice little gif here which shows the basics.

    [​IMG]

    px166bajaj, Mar 22, 2008
    #101
  2. Jamie

    Jamie Active Member

    Messages:
    5,370
    Rides:
    xt660x, 200sx s14a
    so the resonant wave was created to minimalise the scavenging affect?

    Jamie, Mar 22, 2008
    #102
  3. MiNoR cOnFuSiOn

    MiNoR cOnFuSiOn Administrator Staff Member

    Messages:
    14,276
    Rides:
    et2 monster
    resonance wave was DISCOVERD not invented... and it was just a stumbeling block where an engine made the same power, made less nopise and used less fuel

    then people started thinkin about why and figured it was the pulses inside the pipe.. they thought instead of fighting pressure waves, time the pipe so they suck an compress inside the engine.

    the animated gif shows the principles verery well, its applying them to a peice of sheet steel that was the hard bit, its all old news now tho so we can borrow 20 yuear old technology to tripple the power of our engines.

    MiNoR cOnFuSiOn, Mar 22, 2008
    #103
  4. gazell

    gazell Active Member

    Messages:
    1,104
    im probably asking a daft question.but if you dont ask you dont know.. how is the piston moveing up and down makeing the wheel move.. looking at that pic i cant figure it out lol

    gazell, Mar 22, 2008
    #104
  5. Jamie

    Jamie Active Member

    Messages:
    5,370
    Rides:
    xt660x, 200sx s14a
    crank spins the variator + flywheel. variator spins with the belt + clutch until its hits a certain rpm (as the clutch shoes move away from center) then they engage with the clutch bell which is attached to gear input which is connected to he gear output which spins the wheel.

    Jamie, Mar 22, 2008
    #105
  6. capri dave

    capri dave Active Member

    Messages:
    5,076
    when the spark plug fires the compressed gasses (air/fuel) ignite
    and the force of the burn pushes the crown of the piston downwards...

    and because its connected to a crankshaft it returns just in time to be pushed down again ;)

    the variator is bolted onto the crank that is connected via a belt to the clutch ;)

    capri dave, Mar 22, 2008
    #106
  7. MiNoR cOnFuSiOn

    MiNoR cOnFuSiOn Administrator Staff Member

    Messages:
    14,276
    Rides:
    et2 monster
    basicly.. imadgen a wheel on the centre of the thing at the bottom... the transmission just makes use of this spinning.,

    MiNoR cOnFuSiOn, Mar 22, 2008
    #107
