erm, right couldnt get my head round that after one read

i dont particularly wanna be cutting and shutting wires, as in 2 weeks the new barrel will be going on. and if as its gunna be failed on other bits anyway i may aswell wait till the barrel has turned up to re-test it (would rather it passed mind as i cba cycling to and from work for the next week)



had trouble getting my head round it writing it..fairly simple if i was doing it..just need to find the wires that feed into the switch and disconnect them and run the two wires on the kill side to the switch..or just put a simple press button switch on the bars and wire the two wires on for now till the barrels sorted.much simpler..ordered my replacement carb for mine so should have that on saturday.19mm jobby from extremeimport2.bet it wont fit the manifold though..but if it does and it works then happy days..if not..bugger...keep going..bigbore and variator next to sort if it works and then exhaust to cap it all off..never ending this moped lark..



gotta lvoe all this project lark though

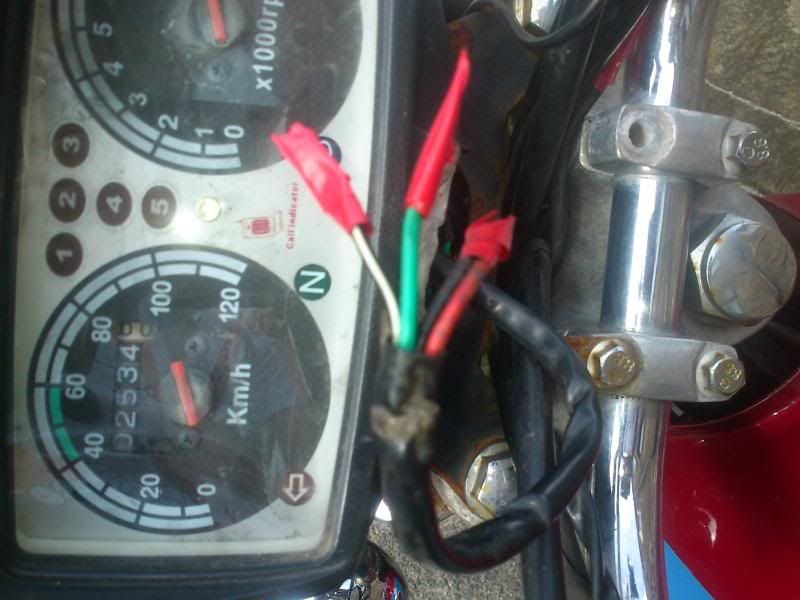

ok, my ignition barrel has 4 wires, red, black, black/white, green.

it will fire up and run without any of them connected to anything, put red and black together to give the electrics (lights/etc) green and black/white make no difference at all. ive put the switch between green and b/w and got nothing either, rather strange, i hope the ignition barrel will work once its wired up



mmmm.what happens if you short any of them to earth directly...do the red one last as i think it might be carrying voltage..if youve got a meter or bulb check for volts or earth..if it lights after connecting any wires to earth...one wire may be common to other ones need to find which ones go to earth and which carry voltage..not sure if one maybe a park light switch wire and the others share an earth.if youve gotta diagram i could have a look and see what i think..email me it if you like... jimbellinger@yahoo.com



this is the closest to mine
http://www.robocog.dyndns.org/cg125/wiring/cg_W_wiring.jpg



black/white and green looks like its the kill and other is ignition as youve got it now..try the kill after youve disconected the ignition side and if it works i can tell you how to wire it in on a double pole double throw switch (dpdt switch) and do away with the barrel alltogether..but if it dont work after disconnecting the ignition wires ..ide say you got a wireing prob on that circuit



right, took apart the red/black fired it up, touched the green, b/w together and nothing



green goes to earth and b/w to cdi..red goes to battery and black is the wireing loom feed from the barrel to all the lights etc..so if you go to the cdi and find the b/w wire and connect a switch to earth from it you should have a cutout or use a meter and trace it back to any connectors and do a switch at that connector....if it works as a b/w + green after ignition disconect,whoo hoo.. if not..short b/w to earth after ignition disconnect..



ok so black/w to black should do it as well?



slow typer me..trying to keep it uncomplicated too.



thats ok, nope that doesnt work, will whip the tank off after tea and find teh cdi



b/w +green =cutout... black+red is ignition ..disconect that before trying the blk/green ...or try shorting the b/w to handle bars or good earth.might have bad connection on the green wire to earth



or you could put a wire on the coil power feed and use a switch to short that to earth..but not too sure if that wouldnt blow a fuse unless you disconnect ignition first



theres a green wire and a black/yellow wire on the diagram that goes to the coil...short the black/yellow to earth..after ignition disconect.that should do it

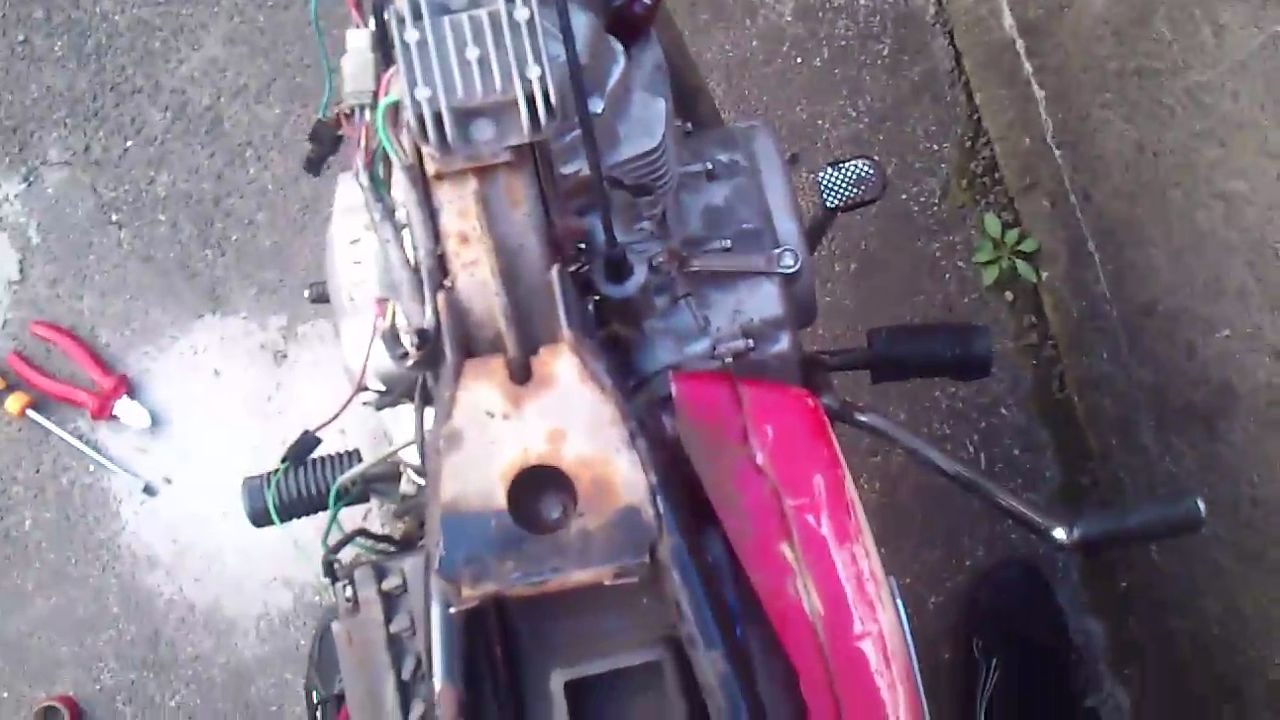

thanks matey works perfect, vid shows with the red and black connected (ignition) then ran switch between cdi b/w wire and battery earth



so just need to make the wires longer and neaten it up, then job done



just had a new look at the past posts and looks like i missed a color on the b/w green referance three posts back



thats all good matey, all working, just gotta hope ive got some longer wire or maybe find some where else to splice in the earth cable



whoo.hoo...hope my carb sorts my prob as easy..maybe i could have a ride out up your way..going to manchester some time to get some grit for a sand blast idea ive got



i love it when electrics go wrong...dont do cdi bollox though..dont understand it all...i like the old way with points and condensers..looks like your honda diagram is a direct copy of your system..be interesting if your carbs an..could be a good bike if you change some of the noodle partsd other shit is the same



hope it is too matey, ive been planning my first ride out today, over to preston to see my mums new house then on to southport
