anyone have a pic of a stock aerox carb setup?

Discussion in 'The Workshop' started by 70ccAerox, Apr 10, 2011.

  1. 70ccAerox

    70ccAerox Member

    Messages:
    37
    i need to know where all the vacumm lines go thanks

    70ccAerox, Apr 10, 2011
    #1
  2. tErr0

    tErr0 Administrator Staff Member

    Messages:
    5,816
    [​IMG]

    [​IMG]

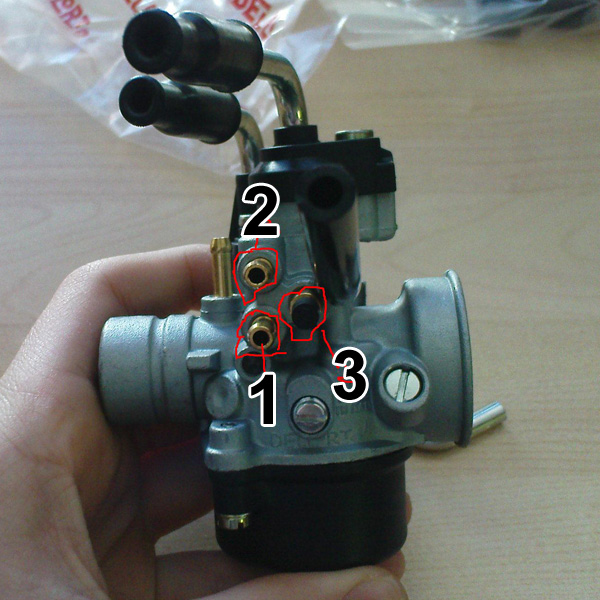

    1-2 are just the over flow
    3 is the oil

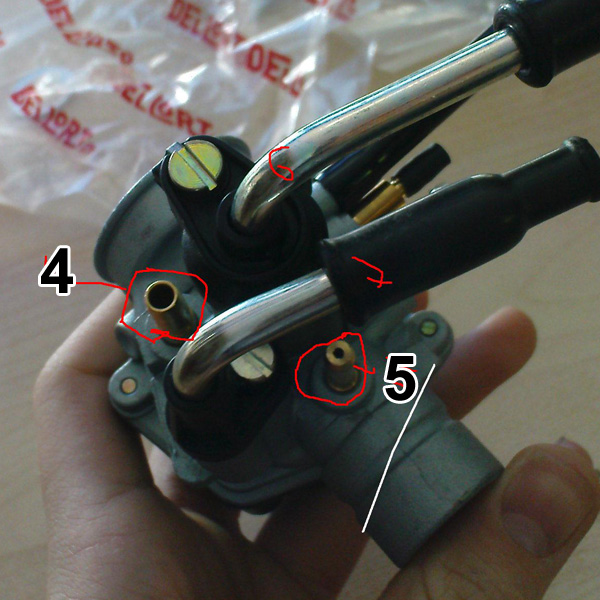

    4 petrol
    5 vacuum

    tErr0, Apr 15, 2011
    #2
  3. 70ccAerox

    70ccAerox Member

    Messages:
    37
    thanks for that man really helps :)

    70ccAerox, Apr 17, 2011
    #3
  4. Chubz

    Chubz Well-Known Member

    Messages:
    1,079
    Rides:
    70cc Aerox 04'
    Terro - this may well have solved my problem these diagrams!... could you tell me if the hose from the bottom of the oil tank is supposed to connect to number 3 ?

    Chubz, Dec 22, 2011
    #4
  5. tErr0

    tErr0 Administrator Staff Member

    Messages:
    5,816
    That's what the picture says!

    tErr0, Dec 23, 2011
    #5
  6. Chubz

    Chubz Well-Known Member

    Messages:
    1,079
    Rides:
    70cc Aerox 04'
    does the oil tank connect to the oil pump and then to the carb, or does it go from the oil tank directly to the carb ?

    Chubz, Dec 23, 2011
    #6
  7. tErr0

    tErr0 Administrator Staff Member

    Messages:
    5,816
    Oh oops. Yeah tank to pump then pump to carb. That's how it should go anyway.

    tErr0, Dec 23, 2011
    #7
  8. Chubz

    Chubz Well-Known Member

    Messages:
    1,079
    Rides:
    70cc Aerox 04'
    so the thicker pipe comes off the oil tank into the waterpump part/magneto.. and then goes into the oil pump and into the smaller thinner pipe going to the carb.. is that right ?

    Chubz, Dec 23, 2011
    #8
  9. tErr0

    tErr0 Administrator Staff Member

    Messages:
    5,816
    I'm not an Aerox owner so I don't know specifics on that bike.

    tErr0, Dec 23, 2011
    #9
