    So most of you know I like to have a play with my toys every now and then, strip them, change everything, re-build and paint them, flog them.
    A few months ago I picked up a couple of Yamaha Neos for practically pennies. I sold one straight off the trailer for the same amount I paid for both, so this one owes me nothing to start with. A good start me thinks.
    You might have seen this one hiding in the background of some photos I may have posted in other threads.


    Body work is in decent shape, lower belly pan needs some plastic welding but every other panel is good.
    Engine is seized as expected, carb is missing, headlight bulb holder missing, stand missing, the usual stuff really.
    Finally got it onto one of the ramps to start stripping it. Bodywork off, attack the engine and get that piston out. Plenty of ageing spider webs under there.

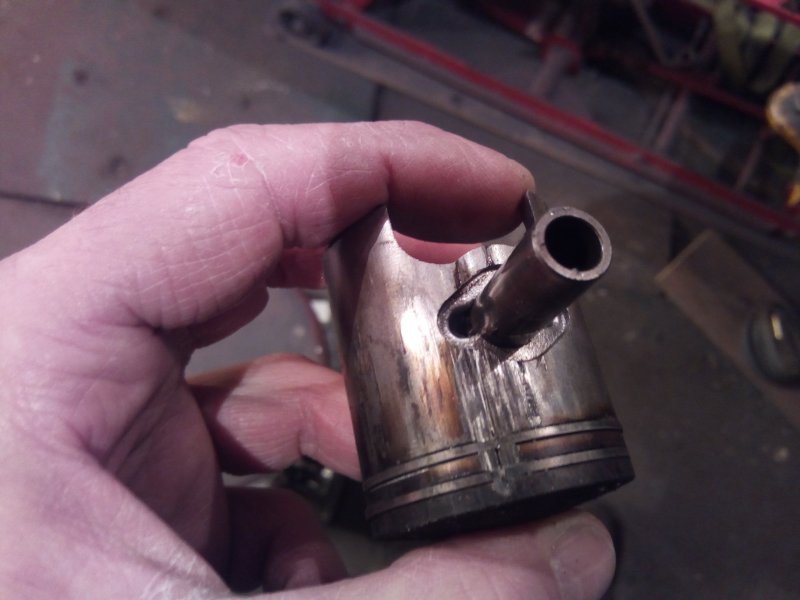

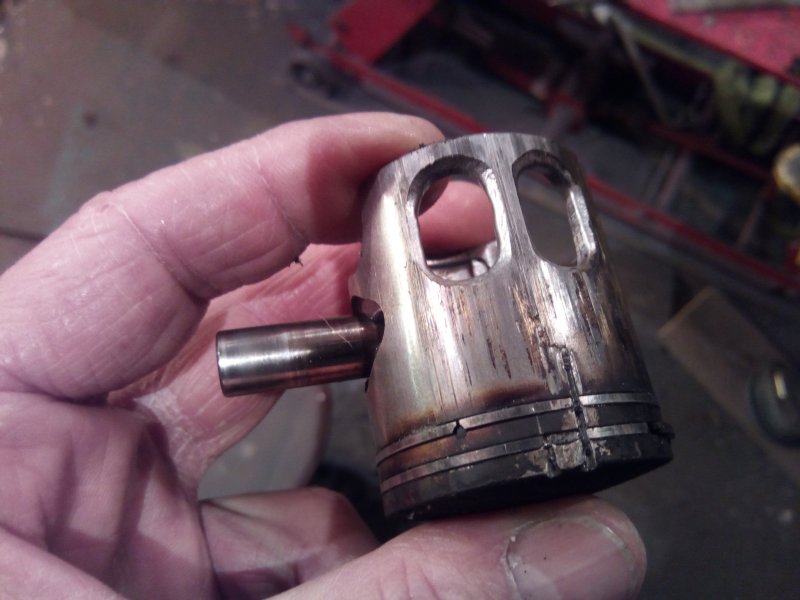

    Piston out, can see straight away why it failed, the gudgeon pin circlip had come out, mullered the bore and piston

    Crank and bearings are good, no sideways play in the rod or signs of seal leaks, but crank bearings and seals will get changed anyway as a matter of course.
    Stripping out the rest of the bike revealed that, unusually, it was totally standard. No changed reed block, standard clutch and bell, standard variator still with the restrictor ring in place. So maybe this hasn't been thrashed to within an inch of it's life then........

    All the electrical connections need a good cleaning, especially the earth points, starter motor points, coil connections etc, as expected.
    Engine out and on the workbench. Here comes the good bit.

    You see that tube that mounts the front of the engine? That has to come out before you can split the engine cases. It has 2 circlips, each end, on the inside, and that tube passes through a bearing at each end. They will be all rusted up and there is no point at all in trying to do anything else with them except get brutal. Grab the hacksaw or angle grinder with a cutting blade on it and cut through the middle of tube.

    Leave each half in place, then split the engine cases, it's easier to get that tube out once the cases are split.
    Once the cases are split you can quite easily remove the circlips and knock the tube and bearings out of each half. When it comes time to rebuild the engine you have a choice of replacing the tube with a new one or welding the two halves together again, but you will need new bearings in there because the others will be knackered.

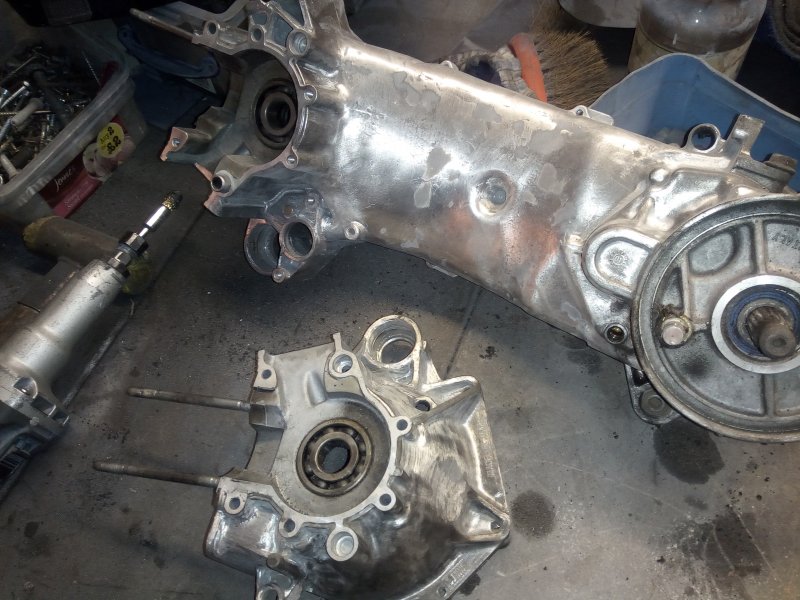

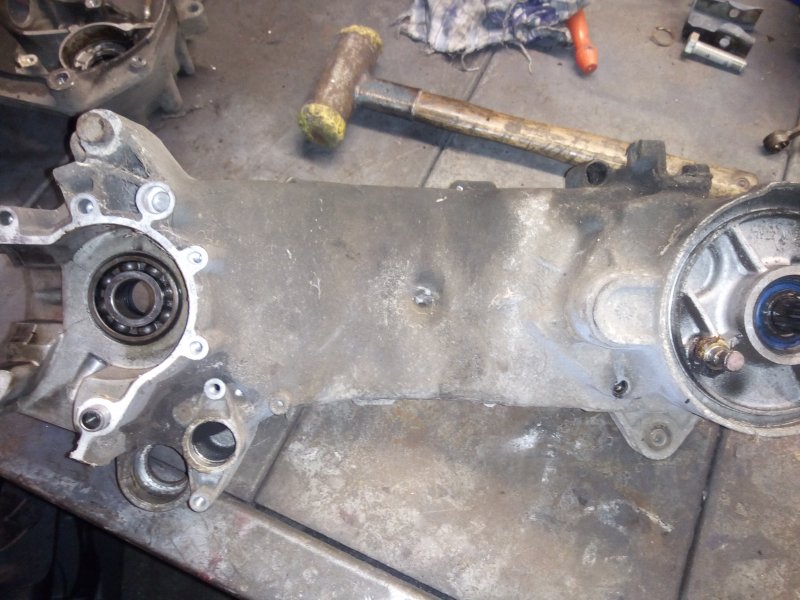

    Engine all split and ready for cleaning (and painting)

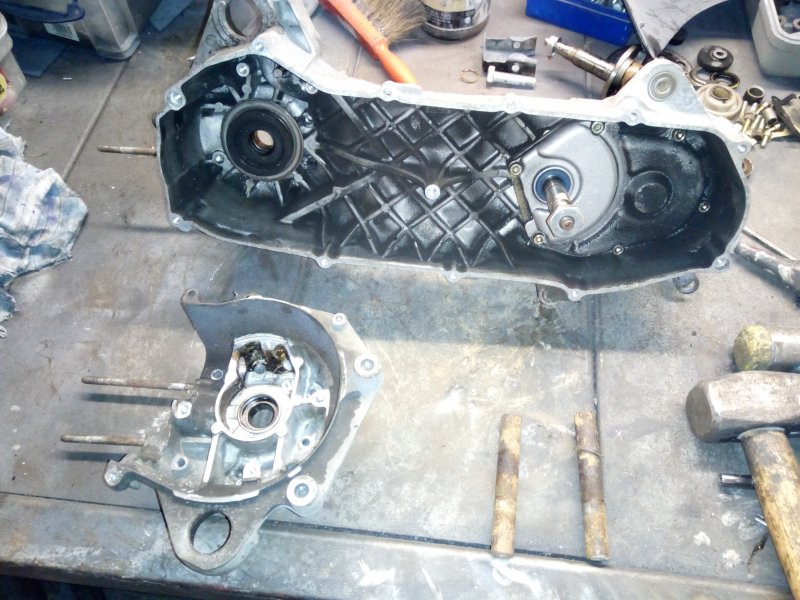

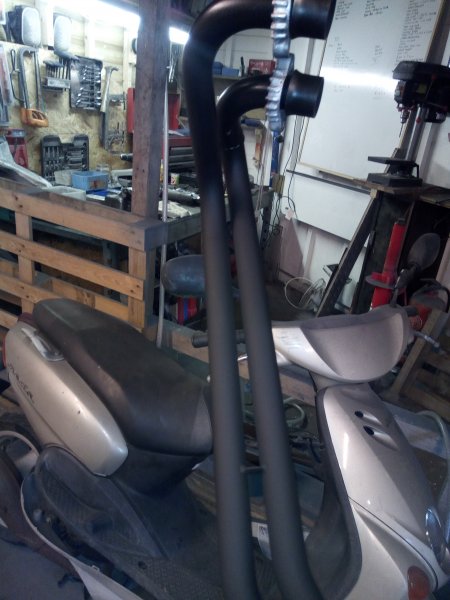

    You can see the tube on the bench in two halves.
    Have a feel of the gearbox shafts and bearings while it's on the bench for sideways/up and down movement, any play, change the bearings and seals. This box feels a bit rough so it will get opened up and inspected later today.


    I decided NOT to go stupid on this one for a change. It will stay standard, cylinder wise, but will obviously have the full de-restriction, 17.5mm carb, open filter, carbon reeds, un-restricted manifold etc etc.
    I know they go well just doing this, no need really for the full upgrade to be done.
    One thing I did notice was that this bike has the manual choke lever on the left hand handlebar, as standard, good from my point of view.
    I'll post more as it moves on.......

  2. scubabiker

    scubabiker NITROJUNKIE

    Messages:
    5,837
    Am I right in thinking the later engines had that tube split in 2?
    I cant recall ever taking a circlip out a jog engine.

  3. Stevep

    Stevep Well-Known Member

    Messages:
    4,861
    No idea to be honest

  4. MARSH

    MARSH Whooooo!

    Messages:
    2,375
    Rides:
    Piaggio Typhoon
    A bit of emery paper will have that piston looking like new !;)

    Stevep and scubabiker like this.
  5. Stevep

    Stevep Well-Known Member

    Messages:
    4,861
    I'm thinking of buying a new machine for the garage so I can do my own re-bore's on the scooter barrels.
    I've probably got a dozen knackered barrels on the shelves that I could take down to my bloke and have them re-bored from 40mm to 47mm, or 50cc to 70cc if you like, but it would be ideal if I could do them here at will rather than take them all down and have them sitting around until I need one.
    Working to the tolerances required is not a problem with my background.

  6. scubabiker

    scubabiker NITROJUNKIE

    Messages:
    5,837
    The one we had at the shop was scary as fuck, im not easily frightened, but that bore machine was something else.
    It was ancient though... im pretty sure it was built by vikings and ran on the blood of sacrificed virgins (scooter owners ha!)
    I guess modern ones are more like a lathe or milling machine, with a clamp to hold the cylinder?

  7. Stevep

    Stevep Well-Known Member

    Messages:
    4,861
    Very similar yes.
    Small bore re-bore machines are hard to come across so I'm thinking of the lathe or miller route.
    I'm sure I could make an adapter plate to mount the cylinder onto, dial gauge to clock the run out, auto-feed the speed to fetch out the excess then hone the final 2 or 4 thou.

  8. Stevep

    Stevep Well-Known Member

    Messages:
    4,861
    Just to clarify, I could mount the cylinder using it's own stud holes, not using clamps.

    scubabiker likes this.
  9. Stevep

    Stevep Well-Known Member

    Messages:
    4,861
    Input shaft bearing was a little noisy so that's been changed. Cleaned up the cases, topped up a few imperfections with chemical metal, all ready for blasting off with thinners then priming and painting tomorrow.



  10. Stevep

    Stevep Well-Known Member

    Messages:
    4,861

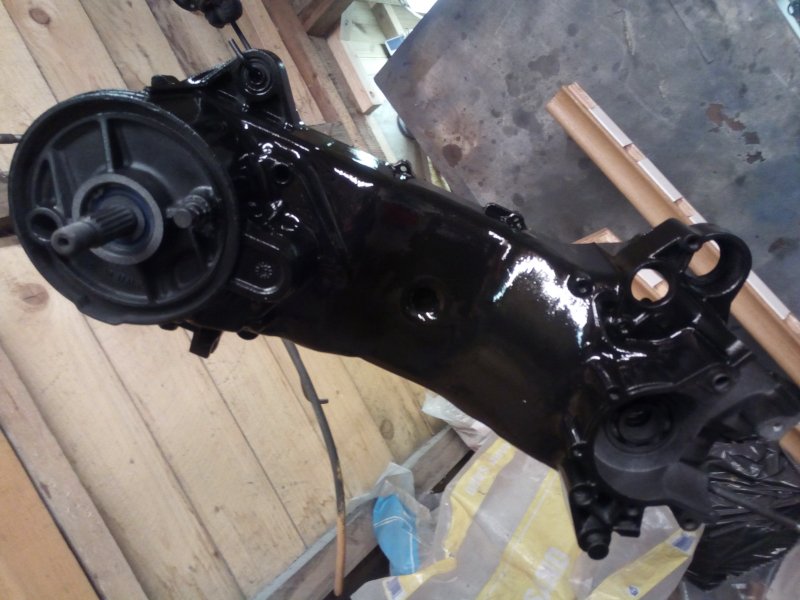

    Nice Matt black on the engine cases, it's still wet in the photo but will dull down, honest.


  11. Stevep

    Stevep Well-Known Member

    Messages:
    4,861

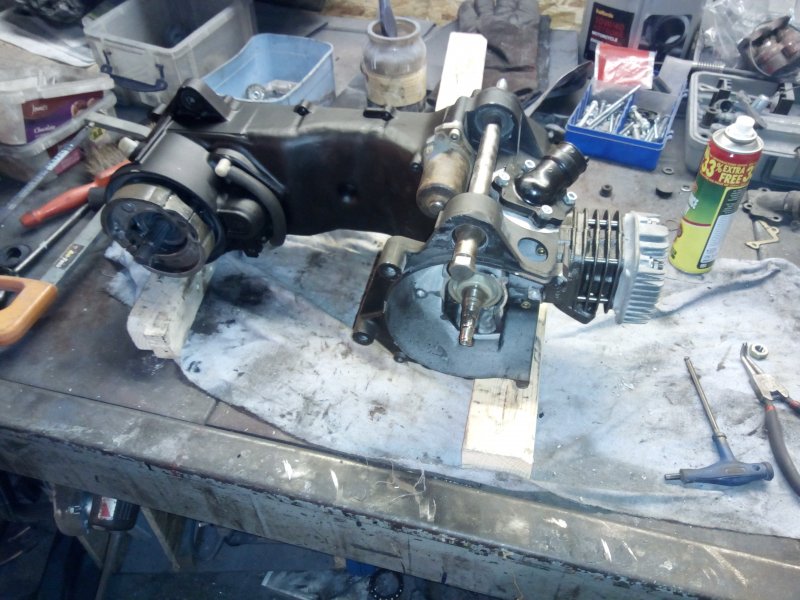

    Engine done now, ready to go back in.
