125 radiator.

Discussion in 'General Scooter Discussion' started by Jamie, Mar 20, 2008.

  1. Jamie

    Jamie Active Member

    Messages:
    5,370
    Rides:
    xt660x, 200sx s14a

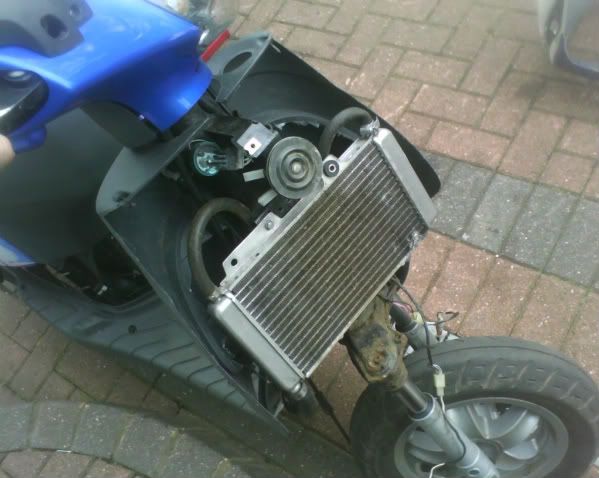

    is this a 125 radiator?

    help apreciated.

    thanks :D

    [​IMG]

  2. kyle1b1

    kyle1b1 New Member

    Messages:
    5,191
    might also want a new front tire.

    the steering ok on the bike ?

  3. Jamie

    Jamie Active Member

    Messages:
    5,370
    Rides:
    xt660x, 200sx s14a
    yeah steering is fine. front tyre is fine. just where my roads abit dusty after some road works so it looks bald lol.

  4. Jamie

    Jamie Active Member

    Messages:
    5,370
    Rides:
    xt660x, 200sx s14a
    also would a vx 125 rad be ok? as i can get a vx radiator and coolant bottle tomoro for 15 quid?

    cheers

  5. jacksp

    jacksp New Member

    Messages:
    1,643
    does the guy you got it off, know if its a 125 rad?

  6. Jamie

    Jamie Active Member

    Messages:
    5,370
    Rides:
    xt660x, 200sx s14a
    well he says it is but i dont know tbh. i want to be sure. the coolant tank is deffinately not a 125 one. or even a 50 runner one, its about the saem size as the zipsp 50cc ones. never mind ill just buy the vx tank and rad today...


    anyone know if the vx 125 rads are the same as the 2 stroke 125 ones?

    cheers.

  7. SKP 172

    SKP 172 New Member

    Messages:
    37
    dat iz a 125 rad u can see the mounts for the fan

  8. Jamie

    Jamie Active Member

    Messages:
    5,370
    Rides:
    xt660x, 200sx s14a
    cheers mate, so looks like i only need the 125 tank

    cheers

  9. MiNoR cOnFuSiOn

    MiNoR cOnFuSiOn Administrator Staff Member

    Messages:
    14,276
    Rides:
    et2 monster
    ye iut is.. why the fuck is the bottle lower than the rad tho? full bottle+empty rad = dead engine... well built NOT

  10. Jamie

    Jamie Active Member

    Messages:
    5,370
    Rides:
    xt660x, 200sx s14a
    yeah i deffinately need to remount the coolant bottle minor, its a 50cc coolant bottle aswell, but ive sourced a 125 runner one so all is good. i will try and mount it with the top of the bottle going through tha hole in the belly pan where its supposed to be, then at least it will be higher than the radiator.

  11. MiNoR cOnFuSiOn

    MiNoR cOnFuSiOn Administrator Staff Member

    Messages:
    14,276
    Rides:
    et2 monster
    50 bottle is fine and if you find an sp one it will fit in the pannels fine.. use a 125 cap just in case the blow out pressure is diff

  12. Jamie

    Jamie Active Member

    Messages:
    5,370
    Rides:
    xt660x, 200sx s14a
    ah right cheers m8. also, all the coolant pipes seem to have kinks etc where they are out of their orginal moulded shape. is there a way of re moulding them? like leaving them in boiling water then fitting them while there all soft, then they should take to that shape?

    cheers :D

  13. MiNoR cOnFuSiOn

    MiNoR cOnFuSiOn Administrator Staff Member

    Messages:
    14,276
    Rides:
    et2 monster
    well, if fittede right they shouldent need to change shape.. the rads in the same place as it would be on a runner so take em all off and refit\..

    remember with the rad, theres a thick an thin pipe on each side top an bottom right, whatever side is to the top of the engine has to feed the top pipe on the bottle and vica versa.. whip the thermostat out the head aswell. this is deffo why the bike overheated ;)

  14. Jamie

    Jamie Active Member

    Messages:
    5,370
    Rides:
    xt660x, 200sx s14a
    yeah i was deffinately going to take the thermostat out as its rattling about inside the head so i gathered it wasnt doing to much good.

    cheers for the help :D

  15. Jamie

    Jamie Active Member

    Messages:
    5,370
    Rides:
    xt660x, 200sx s14a
    well it looks like i cant get the thermostat out :( the screws to take the coolant duct thing of the water jacket are rounded off

    is there a way of making sure that the thermostat is working? before i put it all back together?

    like if i put the waterjacket in a bowl of boilot water or someting?

    cheers

  16. MiNoR cOnFuSiOn

    MiNoR cOnFuSiOn Administrator Staff Member

    Messages:
    14,276
    Rides:
    et2 monster
    bend the edges of the thermo in the open space then rotate and it will come out... im guessing its a metal jacket tho in wich case you want to saw into the screw heads acros the jacket and unscrew..

  17. Jamie

    Jamie Active Member

    Messages:
    5,370
    Rides:
    xt660x, 200sx s14a
    ok cheers. i just cut through the water jacket and removed the screws + thermostat so thats all good now. got some new screws for it aswell.new full top end gasket set coming tomoro or satuday. new malossi head tonite or tomoro, and ill give my coolant system an overhaul tomoro so its ready for the new head. so i should be back on the road soon. also ive sourced a spare runner 125 loom so i can completely re-wire it aswell, so all in all im a happy bunny :D

    cheers for the help guys.

  18. am4n_am4n

    am4n_am4n New Member

    Messages:
    651
    lmao you seem to like putting things in boiling water


    so is this bike a keep or sell?

    =)

  19. monty9120

    monty9120 Active Member

    Messages:
    3,624
    Rides:
    Vespa gts300
    got a whole water jacket here if you fuck yours up
